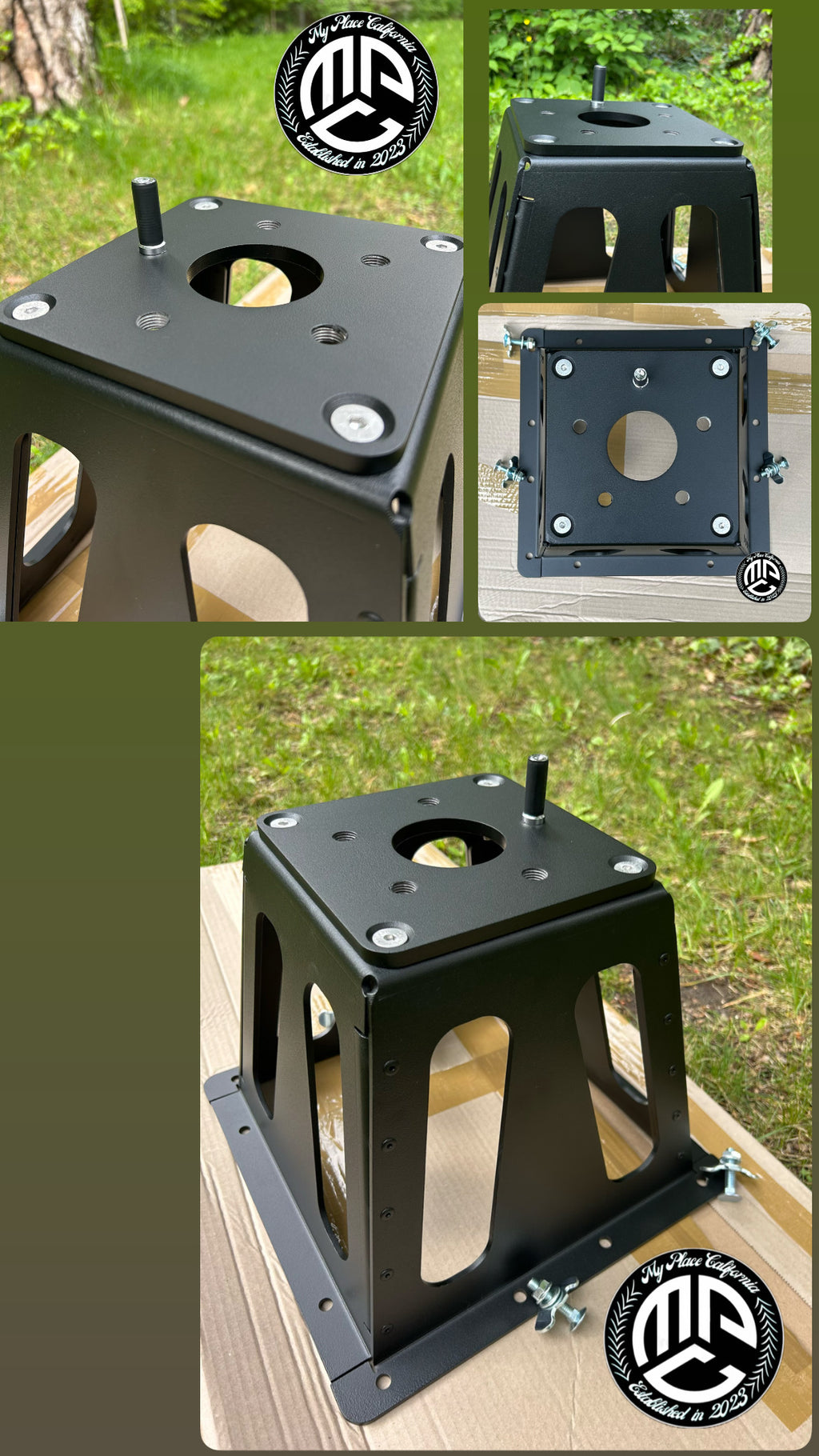

Spare wheel holder module, for our molle board/rear carrier system

Wheel carrier module suitable for our rear molle board and carrier systems. Also suitable for larger off-road tyres. By attaching the spare wheel to the tailgate, it does not have to be removed from under the vehicle in the event of tyre damage.

Opening the tailgate is made somewhat more difficult by the additional weight.

Technical data:

• Wheel carrier material:   aluminium , powder-coated surface, black fine structure
• Material: Adaptation plate: sheet steel, blackfine structure
• Material: Fastening and standard parts: Steel, galvanised surface
• Weight: approx. 4 kg

Scope of delivery:

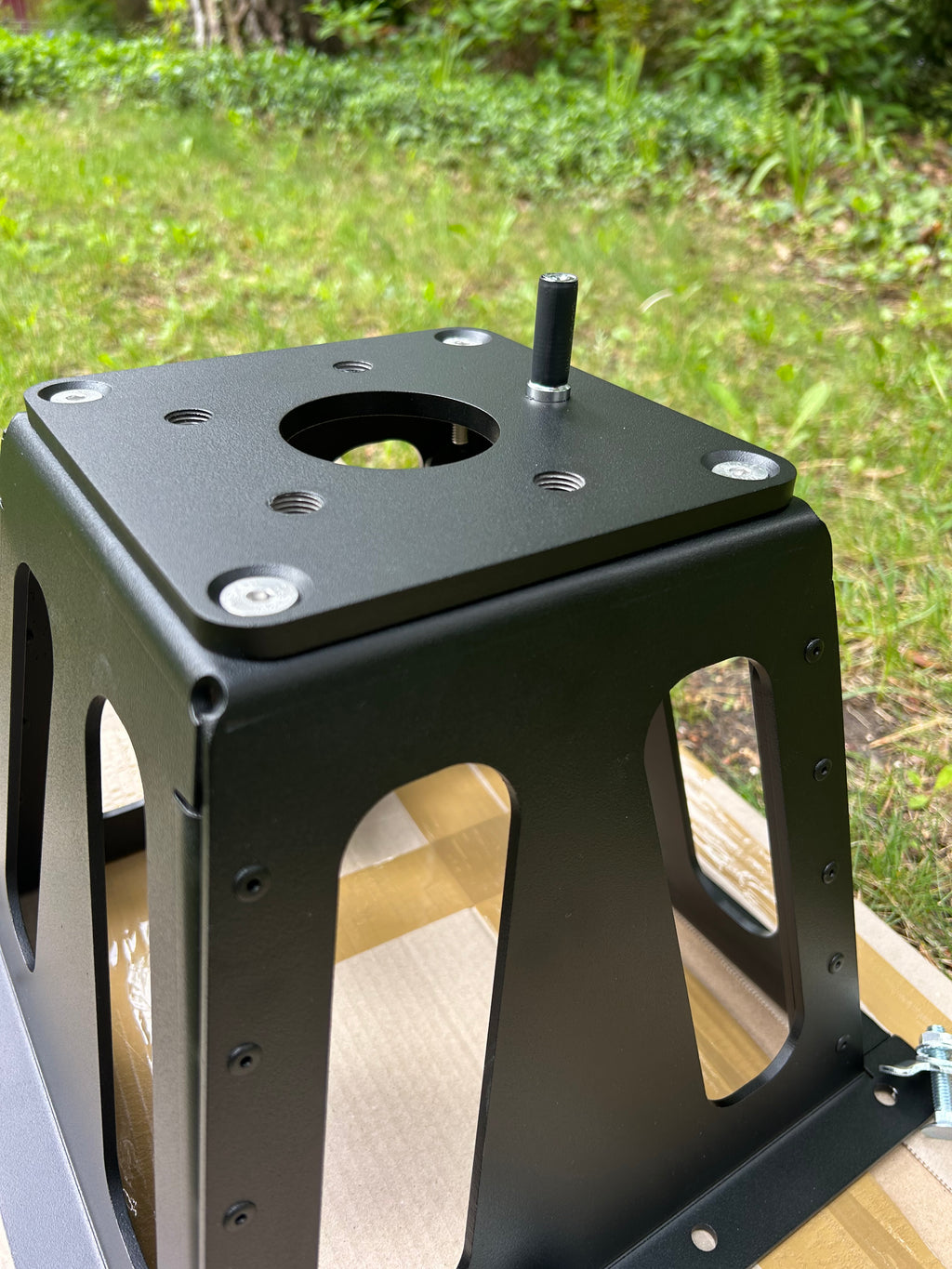

• 1x wheel carrier (sheet aluminium body in lightweight welded  construction)

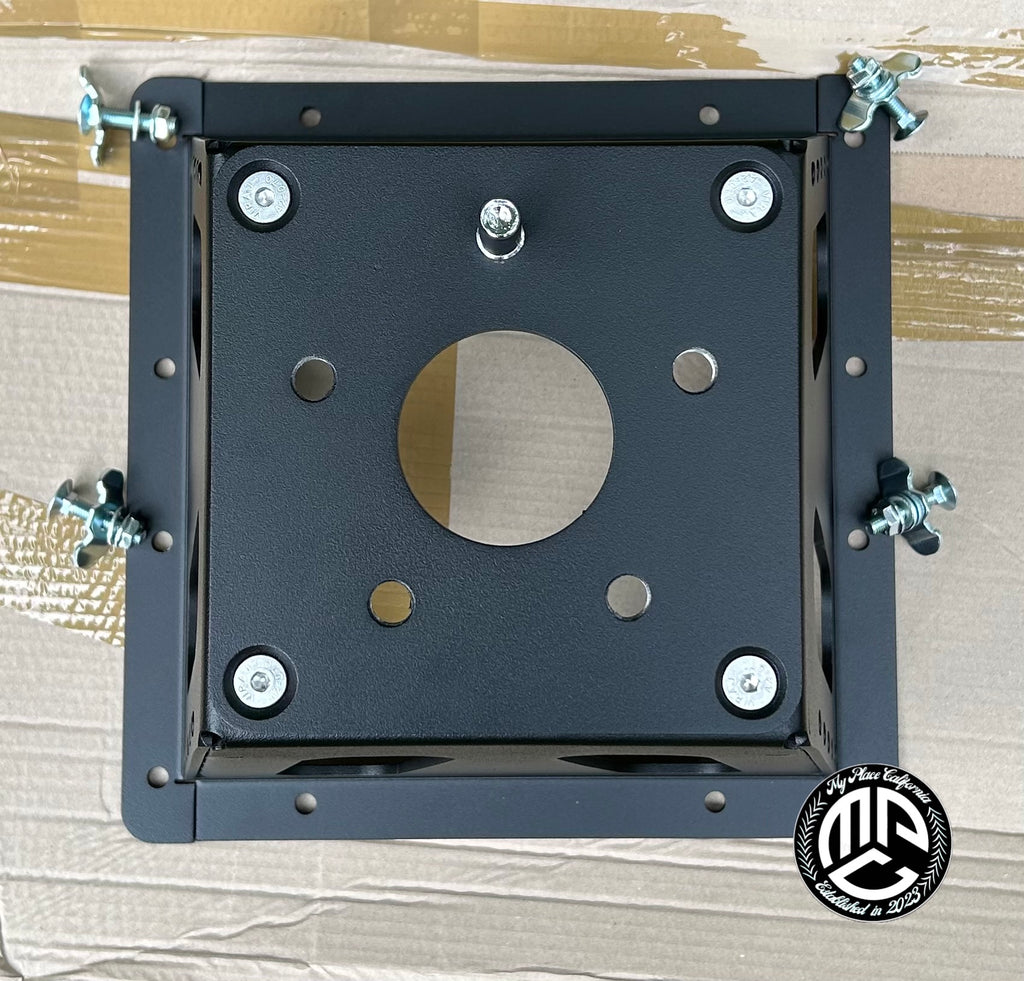

• 1x adaptation plate for bolt circle of the rim (milled part)
• 4x safety screw connection for adaptation plate
• 1x mounting bolt / 4x wheel bolts (depending on vehicle/rim)
• 4x M8 fastening fittings for airline lashing rails

Can also be used universally on two lashing rails at a distance (centre to centre) of 300 mm. The hole spacing of the lashing rails must be 25 mm.

Delivery to Europe, Australia, Taiwan, and Japan

DANGER:

The user uses this product at their own risk. The product is not TÜV-approved, and we are not liable for any damage to the vehicle.
